S11MS7 Phototriac Coupler

S11MS7 Description

S11MS7 S11MS7 s .

S11MS7 Features

* 1. High speed ( t on : MAX. 15 µ s ) 2. High noise resistance ( dV /dt : MIN. 500V/ µ s ) 3. Low trigger current ( IFT : MAX. 5mA ) 4. Mini-flat package type 5. Recognized by UL, file No. E64380 High Speed/ High Noiseresistance Type Phototriac Coupler s Outline Dimensions 1.27± 0.25 6 5 4 S11MS 7 1

S11MS7 Applications

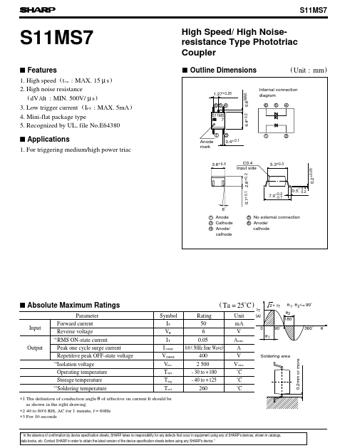

* 1. For triggering medium/high power triac 1 3 3.6± 0.3 0.1± 0.1 2.6± 0.2 0.2 7.0+ - 0.7 0.4 0.5+ - 0.2 6˚ 1 Anode 3 Cathode 4 Anode/ cathode 5 No external connection 6 Anode/ cathode s Absolute Maximum Ratings Input Parameter Forward current Reverse voltage ∗1 RMS ON-state current Peak one c
