S12MD1V Datasheet, Coupler, Sharp Electrionic Components

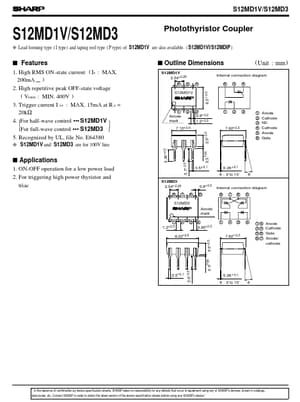

S12MD1V Features

• Coupler 1. High RMS ON-state current ( IT : MAX. 200mA rms ) 2. High repetitive peak OFF-state voltage ( VDRM : MIN. 400V ) 3. Trigger current I FT : MAX. 15mA at R G = 20kΩ 4. For half-wave co

PDF File Details

Part number:

S12MD1V

Manufacturer:

Sharp Electrionic Components

File Size:

77.67kb

Download:

📄 Datasheet

Description:

Photothyristor coupler.

S12MD1V Application

• Applications 1. ON-OFF operation for a low power load 2. For triggering high power thyristor and triac 0.5± 0.1 0.5TYP. 0.26 ± 0.1 θ : 0 to 13 ˚
