S12ME1F, European Safety Standard Approved/ Long Creepage Distance Type Photothyristor Coupler

S12ME1/S12ME1F S12ME1/S12ME1F s .

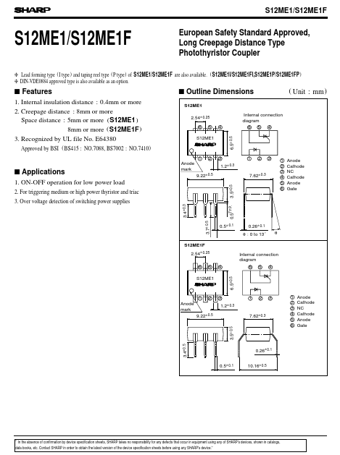

datasheet Preview Page 1 from Datasheet4u.com

S12ME1F_SharpElectrionicComponents.pdf

S12ME1F Datasheet Preview — Preview of S12ME1F PDF

Datasheet Details

Part number:

S12ME1F

Manufacturer:

Sharp Electrionic Components

File Size:

66.08 KB

Description:

European Safety Standard Approved/ Long Creepage Distance Type Photothyristor Coupler

Features

* 1. Internal insulation distance : 0.4mm or more 2. Creepage distance : 8mm or more Space distance : 5mm or more ( S12ME1 ) 8mm or more ( S12ME1F ) 3. Recognized by UL file No. E64380 Approved by BSI ( BS415 : NO.7088, BS7002 : NO.7410) European Safety Standard Approved, Long Creepage Distance Type

Applications

* 1. ON-OFF operation for low power load 2. For triggering medium or high power thyristor and triac 3. Over voltage detection of switching power supplies Anode mark 9.22± 0.5 7.62± 0.3 3.5± 0.5 1 2 3 4 5 6 Anode Cathode NC Cathode Anode Gate 3.4± 0.3 3.7± 0.5 0.5± 0.1 0.5TYP. 0.26± 0.1 θ : 0
