S201D01 - 16-Pin DIP SSR

Product Overview

Sharp Electrionic Components

Part number	S201D01
Manufacturer	Sharp Electrionic Components
File Size	67.89 KB
Description	16-Pin DIP SSR
Datasheet	S201D01 Datasheet

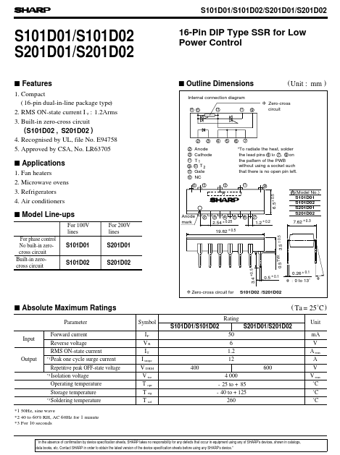

Additional preview pages of the S201D01 datasheet.

1. Compact ( 16-pin dual-in-line package type) 2. RMS ON-state current I T : 1.2Arms 3. Built-in zero-cross circuit ( S101D02 , S201D02 ) 4. Recognised by UL, file No. E94758 5. Approved by CSA, No. LR63705 16-Pin DIP Type SSR for Low Power Control s Outline Dimensions Internal connection diagram 16 15 13 11 ( Unit : mm ) g Zero-cross circuit 9 2 3 4 5 6 7.
To radiate the heat, solder the lead pins 4 to 7 , 9 on the pattern of the PWB without using a socket such that there is no op.
