S201DH1 - 16-Pin DIP SSR

Product Overview

Sharp Electrionic Components

Part number	S201DH1
Manufacturer	Sharp Electrionic Components
File Size	59.95 KB
Description	16-Pin DIP SSR
Datasheet	S201DH1 Datasheet
Additional preview pages of the S201DH1 datasheet.

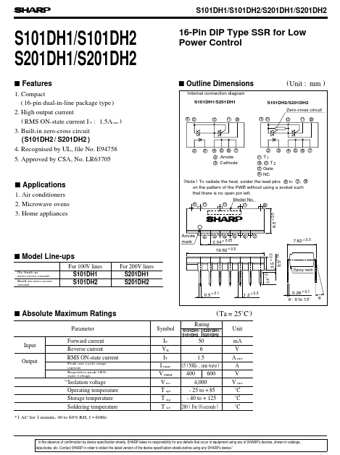

1. Compact ( 16-pin dual-in-line package type ) 2. High output current ( RMS ON-state current I T : 1.5A rms ) 3. Built-in zero-cross circuit ( S101DH2 / S201DH2 ) 4. Recognised by UL, file No. E94758 5. Approved by CSA, No. LR63705 16-Pin DIP Type SSR for Low Power Control s Outline Dimensions Internal connection diagram S101DH1/S201DH1 ( Unit : mm ) S101DH2/S201DH2 Zero-cross circuit 16 15 13 11 9 16 15 13 11 9 2 3 4 5 6 7 2 Anode 3 Cathode 11 15 2 T1 3 4 5 6 7 9 , 13 T 2.
