S202S12 - SIP Type SSR with Snubber Circuit and Mouning Capability for External Heat Sink

Datasheet Summary

Features

  • 1. High radiation resin mold package 2. Built-in snubber circuit 3. Built-in zero-cross circuit ( S102S12/S202S12) 4. High repetitive peak OFF-state voltage S102S11/S102S12 V DRM : 400V S202S11/S202S12 V DRM : 600V 5. RMS ON-state current I T : MAX. 8Arms at TC.

📥 Download Datasheet

Datasheet preview – S202S12

Datasheet Details

Part number S202S12
Manufacturer Sharp Electrionic Components
File Size 58.14 KB
Description SIP Type SSR with Snubber Circuit and Mouning Capability for External Heat Sink
Datasheet download datasheet S202S12 Datasheet
Additional preview pages of the S202S12 datasheet.

📁 Similar Datasheet

  • S2020 - Silicon Power Rectifier (Microsemi Corporation)
  • S2025 - 32 x 32 1.5 GBIT/S DIFFERENTIAL CROSSPOINT SWITCH (AMCC)
  • S202DS4 - Solid state relay (ETC)
  • S20 - Silicon Power Rectifier (Microsemi Corporation)
  • S2000 - Silicon NPN Transistor (Toshiba)
  • S2000 - NPN Transistor (INCHANGE)
  • S2000 - SILICON POWER TRANSISTOR (SavantIC)
  • S2000A - Silicon NPN Transistor (Toshiba)
  • S2000A - SILICON POWER TRANSISTOR (SavantIC)
  • S2000AF - High voltage NPN Power transistor (ST Microelectronics)
Other Datasheets by Sharp Electrionic Components
  • S202S11 - SIP Type SSR with Snubber Circuit and Mouning Capability for External Heat Sink
  • S202S01 - SIP Type SSR for Medium Power Control
  • S202S02 - SIP Type SSR for Medium Power Control
  • S202S03 - SIP Type SSR with Mounting Capability for External Heat Sink
  • S202SE1 - SIP Type SSR for Medium Power Control
  • S202SE2 - SIP Type SSR for Medium Power Control
  • S202T01 - Low Height Type Solid State Relays
  • S202T02 - Low Height Type Solid State Relays

Full PDF Text Transcription

Click to expand full text

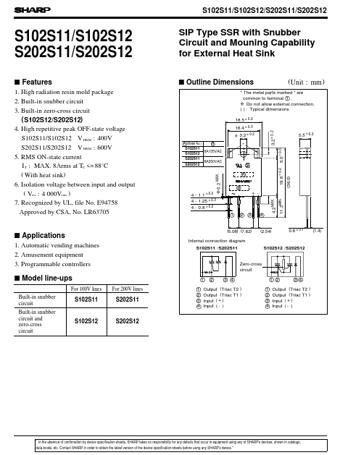

S102S11/S102S12/S202S11/S202S12 S102S11/S102S12 S202S11/S202S12 s Features 1. High radiation resin mold package 2. Built-in snubber circuit 3. Built-in zero-cross circuit ( S102S12/S202S12) 4. High repetitive peak OFF-state voltage S102S11/S102S12 V DRM : 400V S202S11/S202S12 V DRM : 600V 5. RMS ON-state current I T : MAX. 8Arms at TC <= 88˚C ( With heat sink) 6. Isolation voltage between input and output ( Viso : 4 000Vrms ) 7. Recognized by UL, file No. E94758 Approved by CSA, No. LR63705 SIP Type SSR with Snubber Circuit and Mouning Capability for External Heat Sink s Outline Dimensions (Unit : mm ) * The metal parts marked * are common to terminal 1 . g Do not allow external connection. ( ) : Typical dimensions 18.5 ± 0.2 16.4 ± 0.3 φ 3.2 ± 0.2 A (Model No.
