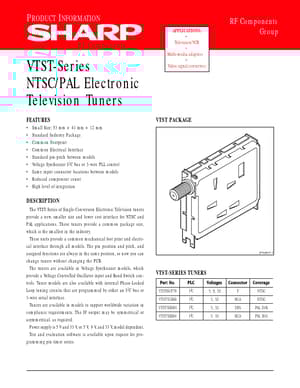

VTST6UF78 NTSC/PAL Electronic Television Tuners

The VTST-Series of Single-Conversion Electronic Television tuners provide a new, smaller size and lower cost interface for NTSC and PAL applications. These tuners provide a common package size, which is the smallest in the industry. These units provide a common mechanical foot print and electrical i.

VTST6UF78 Features

* Small Size: 53 mm × 41 mm × 12 mm Standard Industry Package Common Footprint Common Electrical Interface Standard pin-pitch between models Voltage Synthesizer I2C bus or 3-wire PLL control Same input connector
