IS1U20 - OPIC Light Detector for Infrared Communication

Datasheet Summary

Description

of Standard Specifications (IrDA1.0) Transmission rate : 2.4k to 115.2kbps Modulation system : SIR Receiving distance : 1 m Transmitting wavelength : 850 to 900 nm Receiving waveform : As shown in the right drawing Output waveform : As shown in the right drawing ( 3/6) T Receiving waveform T 0 1

Features

  • 1. IrDA1.0 compatible OPIC light detector (Transmission rate : 2.4 to 115.2kbps) 2. Compact design due to OPIC (Number of parts : 1) 3. Compatible with both 5V and 3V power supplies (Operating supply voltage : 2.7 to 5.5V) 4. Visible light cut-off type 5. Recommended use in combination emitter ( GL1F20) OPIC Light Detector for Infrared Communication (IrDA1.0 Compatible) s Outline Dimensions 5.6 (Unit : mm) 3.2 4.6 R 1.8 0.85 Black resin (visible light cut-off) MAX0.6 s.

📥 Download Datasheet

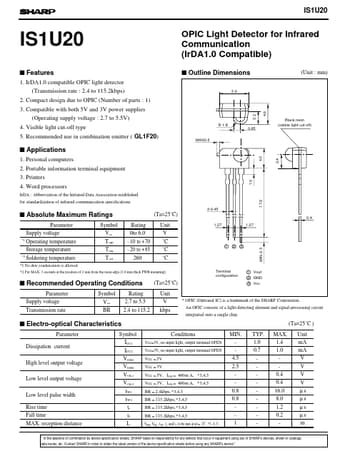

Datasheet preview – IS1U20

Datasheet Details

Part number IS1U20
Manufacturer Sharp
File Size 33.30 KB
Description OPIC Light Detector for Infrared Communication
Datasheet download datasheet IS1U20 Datasheet
Additional preview pages of the IS1U20 datasheet.

📁 Similar Datasheet

  • IS1 - HIGH DENSITY PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS (ISOCOM COMPONENTS)
  • IS1000 - Mechanical Style Pressure Switch (SMC)
  • IS1000-01 - Mechanical Style Pressure Switch (SMC)
  • IS1000E-201 - Mechanical Style Pressure Switch (SMC)
  • IS1000E-202 - Mechanical Style Pressure Switch (SMC)
  • IS1000E-203 - Mechanical Style Pressure Switch (SMC)
  • IS1000E-302 - Mechanical Style Pressure Switch (SMC)
  • IS1000E-303 - Mechanical Style Pressure Switch (SMC)
  • IS1000E-304 - Mechanical Style Pressure Switch (SMC)
  • IS1000E-402 - Mechanical Style Pressure Switch (SMC)
Other Datasheets by Sharp
  • IS1U60 - Sensors with 1-Package Design of Remote Control Detecting Functions owing to OPIC
  • IS1U621 - Sensors for Remote Control
  • IS1603 - AMPLIFIER OUTPUT PHOTO IC
  • IS1604 - OPIC Light Detector for 4 times Speed CD-ROM Drive
  • IS1622 - OPIC Light Detector for Recorder Type MD
  • IS1640 - OPIC Light Detector for DVD-ROM/DVD Player
  • IS1682 - OPIC Light Detector for X40 Speed CD-ROM Drive
  • IS1685 - OPIC Light Detector

Full PDF Text Transcription

Click to expand full text
IS1U20 IS1U20 s Features 1. IrDA1.0 compatible OPIC light detector (Transmission rate : 2.4 to 115.2kbps) 2. Compact design due to OPIC (Number of parts : 1) 3. Compatible with both 5V and 3V power supplies (Operating supply voltage : 2.7 to 5.5V) 4. Visible light cut-off type 5. Recommended use in combination emitter ( GL1F20) OPIC Light Detector for Infrared Communication (IrDA1.0 Compatible) s Outline Dimensions 5.6 (Unit : mm) 3.2 4.6 R 1.8 0.85 Black resin (visible light cut-off) MAX0.6 s Applications 1. Personal computers 2. Portable information terminal equipment 3. Printers 4. Word processors IrDA : Abbreviation of the Infrared Data Association established for standardization of infrared communication specifications 3-0.45 17.9 1.0 4.0 2.
