IS1640 - OPIC Light Detector for DVD-ROM/DVD Player

Datasheet Summary

Description

SHARP's IS1640 is OPIC light detector for pick-up of DVD-ROM/DVD player which is expected as next generation media.

It is also applicable to 2X speed DVD-ROM/DVD player.

It has sensitivity switching terminal which enables to read both 1-layer disc and 2-layer disc.

Features

  • (1) OPIC light detector for RF signal detection (Integrates 6-division PIN photodiode and Amp. IC onto a single chip) (2) High speed response (Response frequency : MIN.20MHz) (3) High sensitivity (Sensitivity : TYP.40.5mV/µW at 650nm) (4) With sensitivity switching terminal which enables to read both 1-layer/2-layer disc (5) Compact and thin package (Package dimensions : 5.0 x 4.0 x 1.5mm) (6) Possible to supply custom-made detecting patterns (7) Pair use with SHARP's laser diode is recommended.

📥 Download Datasheet

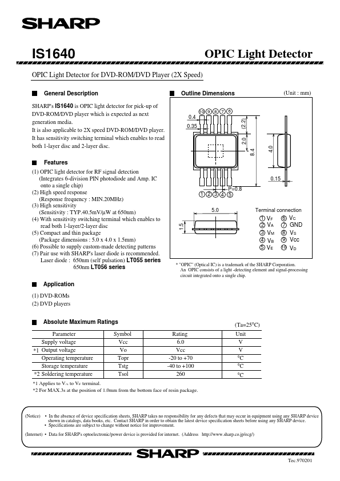

Datasheet preview – IS1640

Datasheet Details

Part number IS1640
Manufacturer Sharp
File Size 29.48 KB
Description OPIC Light Detector for DVD-ROM/DVD Player
Datasheet download datasheet IS1640 Datasheet
Additional preview pages of the IS1640 datasheet.

📁 Similar Datasheet

  • IS1600 - Optocoupler / Phototransistor (ISOCOM)
  • IS1621N - Bluetooth v2.1+EDR Multimedia (Integrated System Solution)
  • IS1636N - Integrated monolithic chip for Bluetooth mono headset application (ISSC)
  • IS1652N - Bluetooth3.0 Mouse Controller (ISSC)
  • IS1652NM - Bluetooth3.0 Mouse Controller (ISSC)
  • IS1678 - Bluetooth Dual-Mode SoC (Microchip)
  • IS1681S - IS1681S (Chenbing)
  • IS1684S - Stereo Bluetooth Module (Chenbing)
  • IS1685S - Noise Reduction Mono Headset (ISSC)
  • IS1690S - Bluetooth 3.0 Multi-Speaker Stereo Audio SOC (ISSC)
Other Datasheets by Sharp
  • IS1603 - AMPLIFIER OUTPUT PHOTO IC
  • IS1604 - OPIC Light Detector for 4 times Speed CD-ROM Drive
  • IS1622 - OPIC Light Detector for Recorder Type MD
  • IS1682 - OPIC Light Detector for X40 Speed CD-ROM Drive
  • IS1685 - OPIC Light Detector
  • IS1U20 - OPIC Light Detector for Infrared Communication
  • IS1U60 - Sensors with 1-Package Design of Remote Control Detecting Functions owing to OPIC
  • IS1U621 - Sensors for Remote Control

Full PDF Text Transcription

Click to expand full text
IS1640 OPIC Light Detector for DVD-ROM/DVD Player (2X Speed) General Description SHARP's IS1640 is OPIC light detector for pick-up of DVD-ROM/DVD player which is expected as next generation media. It is also applicable to 2X speed DVD-ROM/DVD player. It has sensitivity switching terminal which enables to read both 1-layer disc and 2-layer disc. Features (1) OPIC light detector for RF signal detection (Integrates 6-division PIN photodiode and Amp. IC onto a single chip) (2) High speed response (Response frequency : MIN.20MHz) (3) High sensitivity (Sensitivity : TYP.40.5mV/µW at 650nm) (4) With sensitivity switching terminal which enables to read both 1-layer/2-layer disc (5) Compact and thin package (Package dimensions : 5.0 x 4.0 x 1.
