IS1604 - OPIC Light Detector for 4 times Speed CD-ROM Drive

Datasheet Summary

Features

  • 1. OPIC light detector for RF signal detection (6-division PIN and amplifier IC integrated onto single chip) 2. High speed response type (response frequency : MIN. 8MHz) 3. Compact and thin package (Package dimension : 5.0 x 4.0 x 1.5 mm) 4. Customer-compatible light detector pattern.
  • PINPD : PIN type photodiode OPIC Light Detector for 4 times Speed CD-ROM Drive s Outline Dimensions 10 9 8 7 6 0.5 0.4 (Unit : mm) 2.0 (2.2) 8.4 P=0.8 1 2 3 4 5 5.0 5.0 Terminal configuration 4.0 0.15.

📥 Download Datasheet

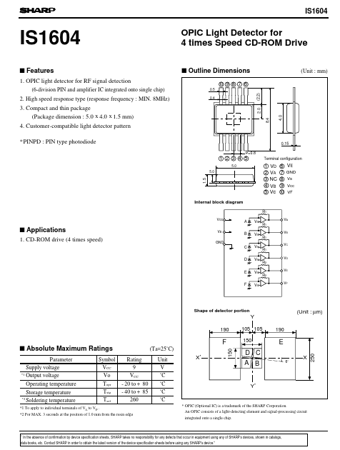

Datasheet preview – IS1604

Datasheet Details

Part number IS1604
Manufacturer Sharp
File Size 31.14 KB
Description OPIC Light Detector for 4 times Speed CD-ROM Drive
Datasheet download datasheet IS1604 Datasheet
Additional preview pages of the IS1604 datasheet.

📁 Similar Datasheet

  • IS1600 - Optocoupler / Phototransistor (ISOCOM)
  • IS1621N - Bluetooth v2.1+EDR Multimedia (Integrated System Solution)
  • IS1636N - Integrated monolithic chip for Bluetooth mono headset application (ISSC)
  • IS1652N - Bluetooth3.0 Mouse Controller (ISSC)
  • IS1652NM - Bluetooth3.0 Mouse Controller (ISSC)
  • IS1678 - Bluetooth Dual-Mode SoC (Microchip)
  • IS1681S - IS1681S (Chenbing)
  • IS1684S - Stereo Bluetooth Module (Chenbing)
  • IS1685S - Noise Reduction Mono Headset (ISSC)
  • IS1690S - Bluetooth 3.0 Multi-Speaker Stereo Audio SOC (ISSC)
Other Datasheets by Sharp
  • IS1603 - AMPLIFIER OUTPUT PHOTO IC
  • IS1622 - OPIC Light Detector for Recorder Type MD
  • IS1640 - OPIC Light Detector for DVD-ROM/DVD Player
  • IS1682 - OPIC Light Detector for X40 Speed CD-ROM Drive
  • IS1685 - OPIC Light Detector
  • IS1U20 - OPIC Light Detector for Infrared Communication
  • IS1U60 - Sensors with 1-Package Design of Remote Control Detecting Functions owing to OPIC
  • IS1U621 - Sensors for Remote Control

Full PDF Text Transcription

Click to expand full text
IS1604 IS1604 s Features 1. OPIC light detector for RF signal detection (6-division PIN and amplifier IC integrated onto single chip) 2. High speed response type (response frequency : MIN. 8MHz) 3. Compact and thin package (Package dimension : 5.0 x 4.0 x 1.5 mm) 4. Customer-compatible light detector pattern *PINPD : PIN type photodiode OPIC Light Detector for 4 times Speed CD-ROM Drive s Outline Dimensions 10 9 8 7 6 0.5 0.4 (Unit : mm) 2.0 (2.2) 8.4 P=0.8 1 2 3 4 5 5.0 5.0 Terminal configuration 4.0 0.15 1 2 3 4 5 VD VA NC VB Vc 6 7 8 9 10 VE GND Vs Vcc VF Internal block diagram R1 Vcc - 1.5 A B C D E F VS VS VS VS VS VS + VA s Applications 1.
