IS1685 - OPIC Light Detector

Datasheet Summary

Features

  • 1. OPIC light detector with built-in RF amplifier (Integrates 6-division PIN photodiode and Amp. IC onto a single chip) 2. High speed response (Response frequency : MIN. 57.4MHz) 3. Can read various discs such as DVD, DVD-ROM, DVD-R, CD-ROM, CD-R 4. High sensitivity 5. Compact and thin package (Package dimensions : 5.0x4.0x1.5mm) 6. Possible to supply custom-made detecting patterns 7. Pair use with SHARP's laser diode is recommended. Laser diode : 650nm band GH06510A2A/B s.

📥 Download Datasheet

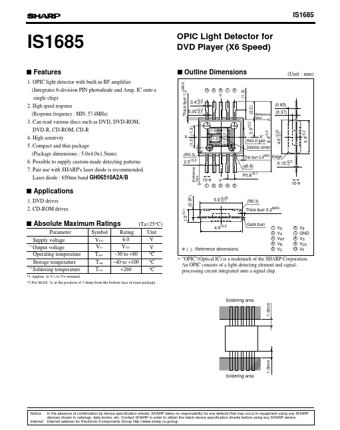

Datasheet preview – IS1685

Datasheet Details

Part number IS1685
Manufacturer Sharp
File Size 86.77 KB
Description OPIC Light Detector
Datasheet download datasheet IS1685 Datasheet
Additional preview pages of the IS1685 datasheet.

📁 Similar Datasheet

  • IS1685S - Noise Reduction Mono Headset (ISSC)
  • IS1681S - IS1681S (Chenbing)
  • IS1684S - Stereo Bluetooth Module (Chenbing)
  • IS1600 - Optocoupler / Phototransistor (ISOCOM)
  • IS1621N - Bluetooth v2.1+EDR Multimedia (Integrated System Solution)
  • IS1636N - Integrated monolithic chip for Bluetooth mono headset application (ISSC)
  • IS1652N - Bluetooth3.0 Mouse Controller (ISSC)
  • IS1652NM - Bluetooth3.0 Mouse Controller (ISSC)
  • IS1678 - Bluetooth Dual-Mode SoC (Microchip)
  • IS1690S - Bluetooth 3.0 Multi-Speaker Stereo Audio SOC (ISSC)
Other Datasheets by Sharp
  • IS1682 - OPIC Light Detector for X40 Speed CD-ROM Drive
  • IS1603 - AMPLIFIER OUTPUT PHOTO IC
  • IS1604 - OPIC Light Detector for 4 times Speed CD-ROM Drive
  • IS1622 - OPIC Light Detector for Recorder Type MD
  • IS1640 - OPIC Light Detector for DVD-ROM/DVD Player
  • IS1U20 - OPIC Light Detector for Infrared Communication
  • IS1U60 - Sensors with 1-Package Design of Remote Control Detecting Functions owing to OPIC
  • IS1U621 - Sensors for Remote Control

Full PDF Text Transcription

Click to expand full text
IS1685 OPIC Light Detector for DVD Player (X6 Speed) IS1685 s Features 1. OPIC light detector with built-in RF amplifier (Integrates 6-division PIN photodiode and Amp. IC onto a single chip) 2. High speed response (Response frequency : MIN. 57.4MHz) 3. Can read various discs such as DVD, DVD-ROM, DVD-R, CD-ROM, CD-R 4. High sensitivity 5. Compact and thin package (Package dimensions : 5.0x4.0x1.5mm) 6. Possible to supply custom-made detecting patterns 7. Pair use with SHARP's laser diode is recommended. Laser diode : 650nm band GH06510A2A/B s Applications 1. DVD drives 2. CD-ROM drives s Absolute Maximum Ratings (Ta=25°C) Parameter Symbol Rating Unit Supply voltage *1 Output voltage Operating temperature Storage temperature *2 Soldering temperature VCC 6.
