PC817X3NSZ0F

Photocoupler

PC817X3NSZ0F Features

* 1. 4-pin DIP package 2. Double transfer mold package (Ideal for Flow Soldering) 3. High isolation voltage between input and output (Viso(rms) : 5kV) 4. High collector-emitter voltage(VCEO : 80V) 5. Current transfer ratio (CTR : MIN. 50% at IF=5 mA, VCE=5V) 6. RoHS directive compliant

* Applicati

PC817X3NSZ0F General Description

PC817XNNSZ0F Series contains an IRED optically coupled to a phototransistor. It is packaged in a 4-pin DIP. Input-output isolation voltage(rms) is 5kV. Collector-emitter voltage is 80V.
*Agency approvals/Compliance 1. Approved by UL file No. E64380 (as model No. PC817) 2. Approved by CSA file N.

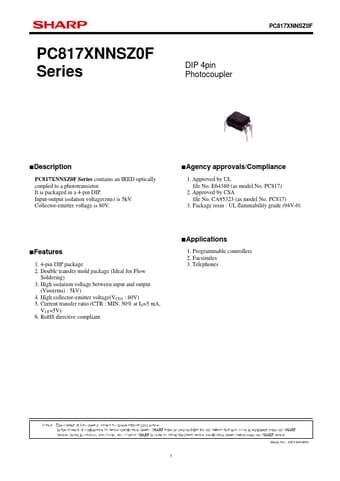

PC817X3NSZ0F Datasheet (262.23 KB)

Preview of PC817X3NSZ0F PDF

Datasheet Details

Part number:

PC817X3NSZ0F

Manufacturer:

Sharp

File Size:

262.23 KB

Description:

Photocoupler.
