PC817X3NSZ1B

DIP 4pin Photocoupler

PC817X3NSZ1B Features

* 1. 4-pin DIP package 2. Double transfer mold package (Ideal for Flow Soldering) 3. High isolation voltage between input and output (Viso(rms) : 5kV) 4. High collector-emitter voltage(VCEO : 80V) 5. Current transfer ratio (CTR : MIN. 50% at IF=5 mA, VCE=5V ,Ta=25℃) 6. RoHS directive compliant

PC817X3NSZ1B General Description

PC817XxNSZ1B Series contains an IRED optically coupled to a phototransistor. It is packaged in a 4-pin DIP. Input-output isolation voltage(rms) is 5kV. Collector-emitter voltage is 80V. CTR is 50% to 400% (at IF=5mA,VCE=5V,Ta=25℃)
* Agency approvals/Compliance 1. Recognized by UL1577 (Double pr.

PC817X3NSZ1B Datasheet (1.30 MB)

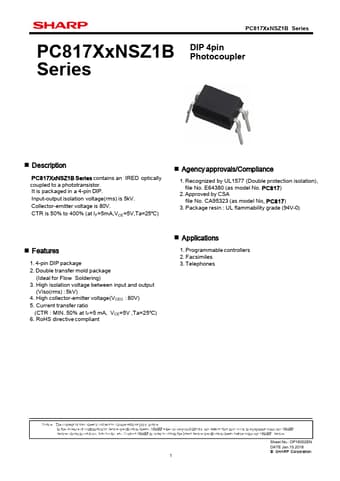

Preview of PC817X3NSZ1B PDF

Datasheet Details

Part number:

PC817X3NSZ1B

Manufacturer:

Sharp

File Size:

1.30 MB

Description:

Dip 4pin photocoupler.
