PC817XNNIP1B, PC817XNNSZ1B - DIP 4pin Photocoupler

The PC817XNNIP1B by Sharp is a DIP 4pin Photocoupler. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the PC817XNNIP1B DIP 4pin Photocoupler datasheet (Sharp).

Datasheet Details

Part number PC817XNNIP1B, PC817XNNSZ1B
Manufacturer Sharp
File Size 1.30 MB
Description DIP 4pin Photocoupler
Datasheet download datasheet PC817XNNSZ1B-Sharp.pdf
Note This datasheet PDF includes multiple part numbers: PC817XNNIP1B, PC817XNNSZ1B.
Please refer to the document for exact specifications by model.

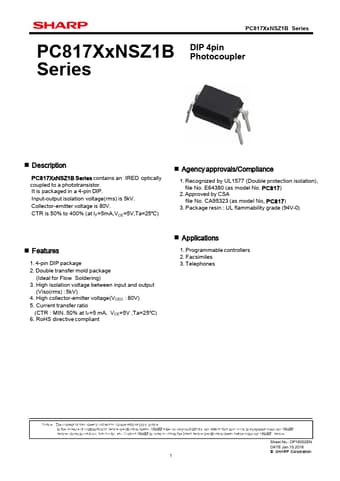

Additional preview pages of the PC817XNNIP1B datasheet.

PC817XNNIP1B Product details

Description

PC817XxNSZ1B Series contains an IRED optically coupled to a phototransistor. Agency approvals/Compliance 1. Recognized by UL1577 (Double protection isolation), file No.E64380 (as model No.PC817) 2. Approved by CSA file No.CA95323 (as model No.PC817) 3. Package resin : UL flammability grade (94V-0)
