PC817XNNSZ0F - Photocoupler

Sharp

The PC817XNNSZ0F by Sharp is a Photocoupler. Below is the official datasheet preview.

📥 Download Datasheet

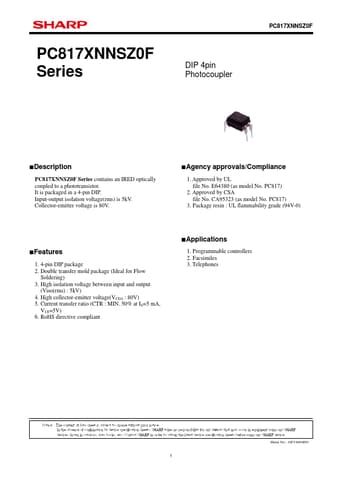

PC817XNNSZ0F Photocoupler by Sharp - Datasheet Preview — Official preview page of the **PC817XNNSZ0F** Photocoupler datasheet (Sharp).

Datasheet Details

Part number	PC817XNNSZ0F
Manufacturer	Sharp
File Size	262.23 KB
Description	Photocoupler
Datasheet	PC817XNNSZ0F-Sharp.pdf
Additional preview pages of the PC817XNNSZ0F datasheet.

PC817XNNSZ0F Product details

Description

PC817XNNSZ0F Series contains an IRED optically coupled to a phototransistor. Agency approvals/Compliance 1. Approved by UL file No.E64380 (as model No.PC817) 2. Approved by CSA file No.CA95323 (as model No.PC817) 3. Package resin : UL flammability grade (94V-0)

Features

1. 4-pin DIP package 2. Double transfer mold package (Ideal for Flow Soldering) 3. High isolation voltage between input and output (Viso(rms) : 5kV) 4. High collector-emitter voltage(VCEO : 80V) 5. Current transfer ratio (CTR : MIN. 50% at IF=5 mA, VCE=5V) 6. RoHS directive compliant.
