SGM724 Datasheet, Amplifiers, Shengbang Microelectronics

SGM724 Features

  • Amplifiers
  • Input Offset Voltage: 4mV (MAX)
  • High Gain-Bandwidth Product: 11MHz
  • High Slew Rate: 8.5V/μs
  • Settling Time to 0.1% with 2V Step: 0.21μs
  • O

PDF File Details

Part number:

SGM724

Manufacturer:

Shengbang Microelectronics

File Size:

1.15MB

Download:

📄 Datasheet

Description:

Rail-to-rail i/o cmos operational amplifiers. The SGM721/2/3/4 are a family of single, dual and quad operational amplifiers, which are optimized for low voltage, low noise and low

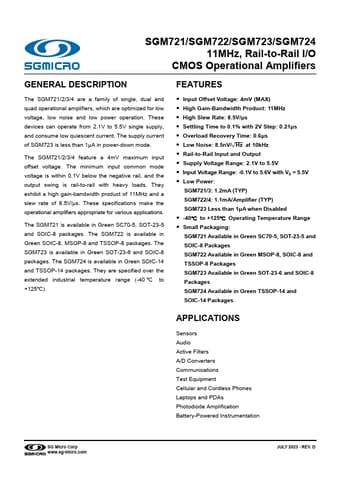

Datasheet Preview: SGM724 📥 Download PDF (1.15MB)
Page 2 of SGM724 Page 3 of SGM724

SGM724 Application

  • Applications The SGM721 is available in Green SC70-5, SOT-23-5 and SOIC-8 packages. The SGM722 is available in Green SOIC-8, MSOP-8 and TSSOP-8 pac
