SGM722 - Rail-to-Rail I/O CMOS Operational Amplifiers

This page provides the datasheet information for the SGM722, a member of the SGM721 Rail-to-Rail I/O CMOS Operational Amplifiers family.

Datasheet Summary

Description

The SGM721/2/3/4 are a family of single, dual and quad operational amplifiers, which are optimized for low voltage, low noise and low power operation.

These devices can operate from 2.1V to 5.5V single supply, and consume low quiescent current.

Features

Input Offset Voltage: 4mV (MAX).
High Gain-Bandwidth Product: 11MHz.
High Slew Rate: 8.5V/μs.
Settling Time to 0.1% with 2V Step: 0.21μs.
Overload Recovery Time: 0.6μs.
Low Noise: 8.5nV/√Hz at 10kHz.
Rail-to-Rail Input and Output.
Supply Voltage Range: 2.1V to 5.5V.
Input Voltage Range: -0.1V to 5.6V with VS = 5.5V.
Low Power: SGM721/3: 1.2mA (TYP) SGM722/4: 1.1mA/Amplifier (TYP) SGM723 Less than 1μA when Disabled.
-40℃ to +125℃ Operating T.

Datasheet Details

Part number	SGM722
Manufacturer	Shengbang Microelectronics
File Size	1.15 MB
Description	Rail-to-Rail I/O CMOS Operational Amplifiers
Datasheet	SGM722 Datasheet

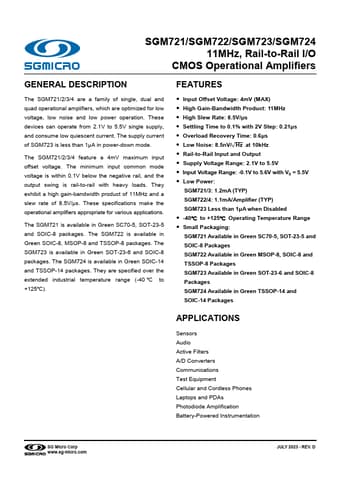

Additional preview pages of the SGM722 datasheet.

📁 Similar Datasheet

SGM7220 - USB Type-C Configuration Channel Logic and Port Control (SG Micro)

SGM72204A - SP4T Antenna Tuning Switch (SG Micro)

SGM7222 - High Speed USB 2.0 (480Mbps) DPDT Analog Switch (SG Micro Limited)

SGM7222 - High Speed USB 2.0 DPDT Analog Switch (SG Micro)

SGM7223 - High Speed USB 2.0(480Mbps) DPDT Analog Switch (SG Micro Limited)

SGM7227 - High Speed USB 2.0 DPDT Analog Switch (SG Micro)

SGM722Q - Rail-to-Rail I/O CMOS Operational Amplifier (SG Micro)

SGM72002 - High Linearity SPDT RF Switch (SG Micro)

SGM72003 - High Linearity SP3T RF Switch (SG Micro)

SGM72004A - High Linearity SP4T RF Switch (SG Micro)

Full PDF Text Transcription

Click to expand full text

SGM721/SGM722/SGM723/SGM724 11MHz, Rail-to-Rail I/O CMOS Operational Amplifiers GENERAL DESCRIPTION The SGM721/2/3/4 are a family of single, dual and quad operational amplifiers, which are optimized for low voltage, low noise and low power operation. These devices can operate from 2.1V to 5.5V single supply, and consume low quiescent current. The supply current of SGM723 is less than 1μA in power-down mode. The SGM721/2/3/4 feature a 4mV maximum input offset voltage. The minimum input common mode voltage is within 0.1V below the negative rail, and the output swing is rail-to-rail with heavy loads. They exhibit a high gain-bandwidth product of 11MHz and a slew rate of 8.5V/μs. These specifications make the operational amplifiers appropriate for various applications.
