SGM706 Microprocessor Supervisory

📥 Download Datasheet  Datasheet Preview Page 1

Description

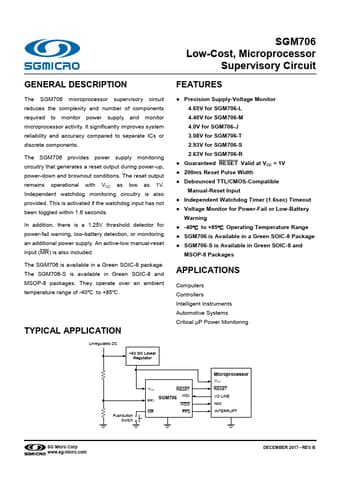

SGM706 Low-Cost, Microprocessor Supervisory Circuit GENERAL .
The SGM706 microprocessor supervisory circuit reduces the complexity and number of components required to monitor power supply and monitor microproces.

📥 Download Datasheet

Preview of SGM706 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SGM706
Manufacturer
Shengbang Microelectronics
File Size
0.96 MB
Datasheet
SGM706-ShengbangMicroelectronics.pdf
Description
Microprocessor Supervisory

Features

* Precision Supply-Voltage Monitor 4.65V for SGM706-L 4.40V for SGM706-M 4.0V for SGM706-J 3.08V for SGM706-T 2.93V for SGM706-S 2.63V for SGM706-R
* Guaranteed R
* E
* S
* E
* T
* Valid at VCC = 1V
* 200ms Reset Pulse Width
* Debounced TTL/CMOS-Co

Applications

* Computers Controllers Intelligent Instruments Automotive Systems Critical μP Power Monitoring Pushbutton Switch VCC RESET PFI SGM706 WDI WDO MR PFO Microprocessor VCC RESET I/O LINE NMI INTERRUPT SG Micro Corp www. sg-micro. com DECEMBER 2017
* REV. B SGM706 Low-Cost, Microprocessor
