SGM71612R83, SGM71612R81 Voltage-Output DAC

SG Micro

Description

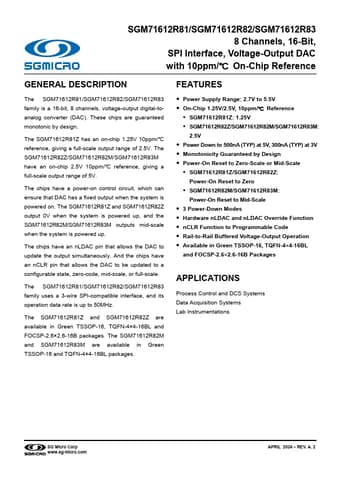

SGM71612R81/SGM71612R82/SGM71612R83 8 Channels, 16-Bit, SPI Interface, Voltage-Output DAC with 10ppm/℃ On-Chip Reference GENERAL .
The SGM71612R81/SGM71612R82/SGM71612R83 family is a 16-bit, 8 channels, voltage-output digital-toanalog converter (DAC).

📥 Download Datasheet

SGM71612R83 Datasheet Preview — This datasheet PDF includes multiple part numbers: SGM71612R83, SGM71612R81. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SGM71612R83, SGM71612R81
Manufacturer: SG Micro
File Size: 2.41 MB
Datasheet: SGM71612R81-SGMicro.pdf
Description: Voltage-Output DAC
Note: This datasheet PDF includes multiple part numbers: SGM71612R83, SGM71612R81.
Please refer to the document for exact specifications by model.

Features

* Power Supply Range: 2.7V to 5.5V
* On-Chip 1.25V/2.5V, 10ppm/℃ Reference
* SGM71612R81Z: 1.25V
* SGM71612R82Z/SGM71612R82M/SGM71612R83M: 2.5V
* Power Down to 500nA (TYP) at 5V, 300nA (TYP) at 3V
* Monotonicity Guaranteed by Design
* Power-On Reset to Zero-Scale or Mid-S

Applications

* Process Control and DCS Systems Data Acquisition Systems Lab Instrumentations SG Micro Corp www. sg-micro. com APRIL 2024
* REV. A. 2 SGM71612R81 8 Channels, 16-Bit, SPI Interface, Voltage-Output DAC SGM71612R82/SGM71612R83 with 10ppm/℃ On-Chip Reference PACKAGE/ORDERING INFORMATION MO
