SGM71612R82 Voltage-Output DAC

The SGM71612R81/SGM71612R82/SGM71612R83 family is a 16-bit, 8 channels, voltage-output digital-toanalog converter (DAC). These chips are guaranteed monotonic by design. The SGM71612R81Z has an on-chip 1.25V 10ppm/℃ reference, giving a full-scale output range of 2.5V. The SGM71612R82Z/SGM71612R82M/SG.

SGM71612R82 Features

* Power Supply Range: 2.7V to 5.5V

* On-Chip 1.25V/2.5V, 10ppm/℃ Reference

* SGM71612R81Z: 1.25V

* SGM71612R82Z/SGM71612R82M/SGM71612R83M: 2.5V

* Power Down to 500nA (TYP) at 5V, 300nA (TYP) at 3V

* Monotonicity Guaranteed by Design

* Power-On Reset to Zero-Scale or Mid-S

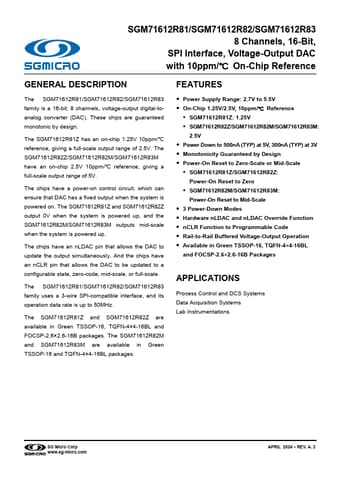

SGM71612R81-SGMicro.pdf

SGM71612R82 Datasheet Preview — This datasheet PDF includes multiple part numbers: SGM71612R82, SGM71612R81. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SGM71612R82, SGM71612R81

Manufacturer:

SG Micro

File Size:

2.41 MB

Description:

Voltage-output dac.

Note:

This datasheet PDF includes multiple part numbers: SGM71612R82, SGM71612R81.
Please refer to the document for exact specifications by model.
