SGM706B

Microprocessor Supervisory Circuit

SGM706B Features

* Ultra-Low Supply Current: < 1μA (TYP)

* Precision Supply-Voltage Monitor 4.63V for SGM706B-L 4.38V for SGM706B-M 4.0V for SGM706B-J 3.08V for SGM706B-T 2.93V for SGM706B-S 2.63V for SGM706B-R

* Guaranteed nRESET Valid at VCC = 1V

* Reset Pulse Width: 200ms (TYP)

* Debounced TTL

SGM706B General Description

The SGM706B is an integrated microprocessor supervisory device. Compared with the design using a single IC or discrete components, this integration design has the advantage of improving system stability and accuracy. The SGM706B can be reset under power-up, power-down or even voltage reduction brown.

SGM706B Datasheet (753.65 KB)

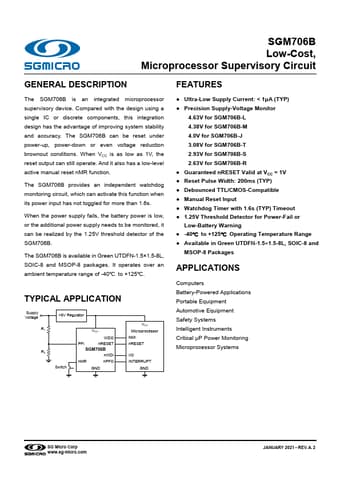

Preview of SGM706B PDF

Datasheet Details

Part number:

SGM706B

Manufacturer:

SG Micro

File Size:

753.65 KB

Description:

Microprocessor supervisory circuit.
