SGM722Q Datasheet, Amplifier, SG Micro

SGM722Q Features

  • Amplifier a ±6.5mV maximum input offset voltage. The minimum input common mode voltage is within 0.1V below the negative rail, and the output swing is rail-to-rail with heavy loads. It exhibits a

PDF File Details

Part number:

SGM722Q

Manufacturer:

SG Micro

File Size:

740.08kb

Download:

📄 Datasheet

Description:

Rail-to-rail i/o cmos operational amplifier. The SGM722Q is a dual, low voltage, low noise and low power operational amplifier for automotive applications. This device can operat

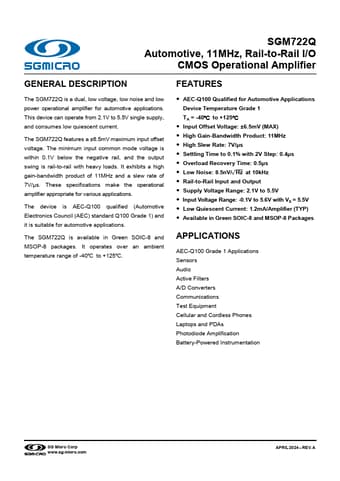

Datasheet Preview: SGM722Q 📥 Download PDF (740.08kb)
Page 2 of SGM722Q Page 3 of SGM722Q

SGM722Q Application

  • Applications This device can operate from 2.1V to 5.5V single supply, and consumes low quiescent current. The SGM722Q features a ±6.5mV maximum inp
