* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Ideal for printed circuit boards Low reverse leakage High forward surge current capability High temperature soldering guaranteed: 260 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension POS.LEAD 0.032(
2W08M
Shunye
233.95 KB
Silicon bridge rectifiers.

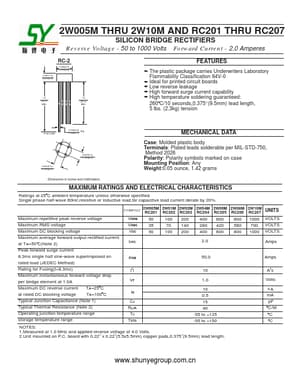

2W005M THRU 2W10M AND RC201 THRU RC207
SILICON BRIDGE RECTIFIERS Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Amperes
0.290(7.4) 0.270(6..
