SF6772S - Power MOSFET

Product Overview

Datasheet Details

Part number	SF6772S
Manufacturer	SiFirst
File Size	79.84 KB
Description	Power MOSFET
Datasheet	SF6772S Datasheet

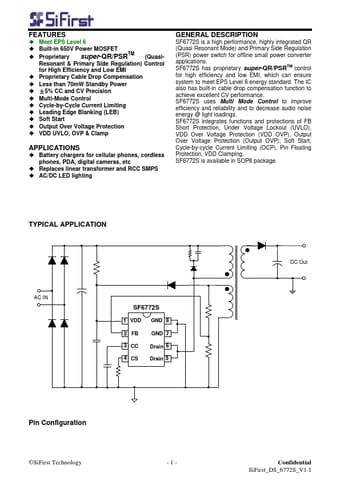

Additional preview pages of the SF6772S datasheet.

Product details

Description

SF6772S is a high performance, highly integrated QR (Quasi Resonant Mode) and Primary Side Regulation (PSR) power switch for offline small power converter applications.

Features

Meet EPS Level 6.
Built-in 650V Power MOSFET.
Proprietary super-QR/PSRTM (Quasi- Resonant & Primary Side Regulation) Control for High Efficiency and Low EMI.
Proprietary Cable Drop Compensation.
Less than 70mW Standby Power.
±5% CC and CV Precision.
Multi-Mode Control.
Cycle-by-Cycle Current Limiting.
Leading Edge Blanking (LEB).
Soft Start.
Output Over Voltage Protection.
VDD UVLO, OVP & Clamp.
