SiT2002B - One-Output Clock Generator

SiTime

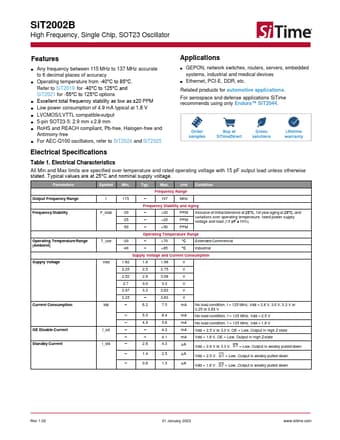

SiT2002B Datasheet Preview — Preview of SiT2002B PDF

Datasheet Details

Part number	SiT2002B
Manufacturer	SiTime
File Size	974.58 KB
Description	One-Output Clock Generator
Datasheet	SiT2002B-SiTime.pdf

SiT2002B Product details

Description

Top View Pin Symbol Functionality 1 GND Power Electrical ground 2 NC No Connect No connect Output Enable H[1]: specified frequency output L: output is high impedance.Only output driver is disabled.H or Open[1]: specified frequency output 3 OE / ST /NC Standby L: output is low (weak pull down).Device goes to sleep mode.Supply current reduces to I_std.No Connect Any voltage between 0 and Vdd or Open[1]: Specified frequency output.Pin 3 has no function.4 VDD Power Pow

Features

Any frequency between 115 MHz to 137 MHz accurate to 6 decimal places of accuracy.
Operating temperature from -40°C to 85°C. Refer to SiT2019 for -40°C to 125°C and SiT2021 for -55°C to 125°C options.
Excellent total frequency stability as low as ±20 PPM.
Low power consumption of 4.9 mA typical at 1.8 V.
LVCMOS/LVTTL compatible output.
5-pin SOT23-5: 2.9 mm x 2.8 mm.
RoHS and REACH compliant, Pb-free, Halogen-free and Antimony-free.
For AEC-Q100 oscillato.
