SIT1042 - standby mode CAN FD bus transceiver

📥 Download Datasheet

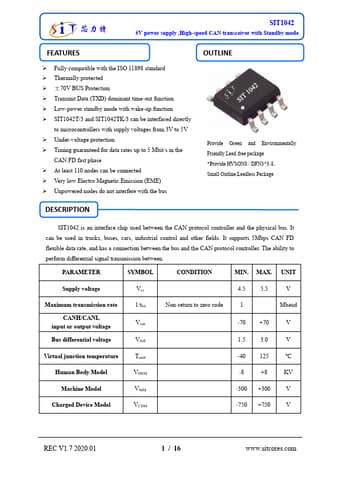

SIT1042 Datasheet Preview — Preview of SIT1042 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: SIT1042
Manufacturer: SIT
File Size: 932.13 KB
Datasheet: SIT1042-SIT.pdf
Description: standby mode CAN FD bus transceiver

SIT1042 Product details

Description

SIT1042 is an interface chip used between the CAN protocol controller and the physical bus.

Features

Fully compatible with the ISO 11898 standard.
Thermally protected.
±70V BUS Protection.
Transmit Data (TXD) dominant time-out function.
Low-power standby mode with wake-up function.
SIT1042T/3 and SIT1042TK/3 can be interfaced directly to microcontrollers with supply voltages from 3V to 5V.
Under-voltage protection.
Timing guaranteed for data rates up to 5 Mbit/s in the CAN FD fast phase.
At least 110 nodes can be.
