SIT1043 - Low-Power CAN FD Bus Transceiver

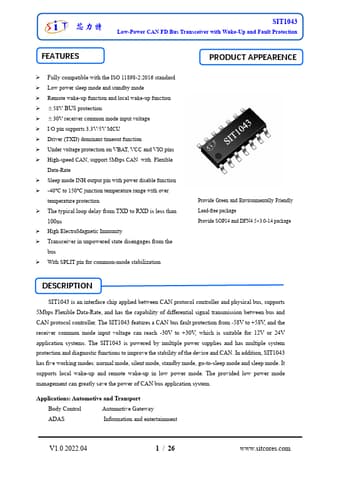

SIT1043 Datasheet Preview — Preview of SIT1043 PDF

Datasheet Details

Part number	SIT1043
Manufacturer	SIT
File Size	867.55 KB
Description	Low-Power CAN FD Bus Transceiver
Datasheet	SIT1043-SIT.pdf

SIT1043 Product details

Description

SIT1043 is an interface chip applied between CAN protocol controller and physical bus, supports 5Mbps Flexible Data-Rate, and has the capability of differential signal transmission between bus and CAN protocol controller.

Features

Fully compatible with the ISO 11898-2:2016 standard.
Low power sleep mode and standby mode.
Remote wake-up function and local wake-up function.
±58V BUS protection.
±30V receiver common mode input voltage.
I/O pin supports 3.3V/5V MCU.
Driver (TXD) dominant timeout function.
Under voltage protection on VBAT, VCC and VIO pins.
High-speed CAN, support 5Mbps CAN with Flexible Data-Rate.
Sleep mode INH output.
