SIT1042AQ - 5Mbps CAN FD transceiver

📥 Download Datasheet

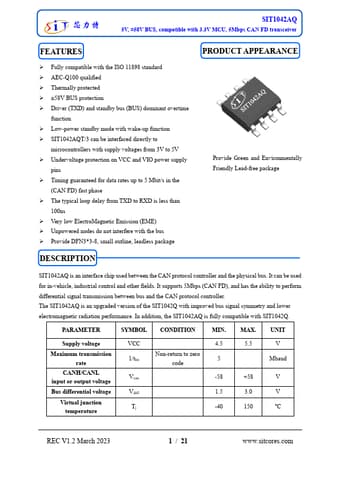

SIT1042AQ Datasheet Preview — Preview of SIT1042AQ PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SIT1042AQ
Manufacturer	SIT
File Size	859.27 KB
Description	5Mbps CAN FD transceiver
Datasheet	SIT1042AQ-SIT.pdf

SIT1042AQ Product details

Description

SIT1042AQ is an interface chip used between the CAN protocol controller and the physical bus.

Features

Fully compatible with the ISO 11898 standard.
AEC-Q100 qualified.
Thermally protected.
±58V BUS protection.
Driver (TXD) and standby bus (BUS) dominant overtime function.
Low-power standby mode with wake-up function.
SIT1042AQT/3 can be interfaced directly to microcontrollers with supply voltages from 3V to 5V.
Undervoltage protection on VCC and VIO power supply pins.
Timing guaranteed for data rates up to 5 Mbit/s.
