SIT1043Q - Low-Power CAN FD Bus Transceiver

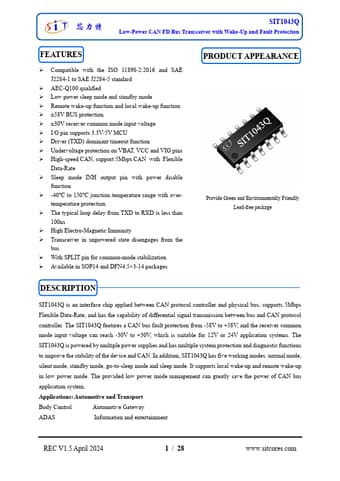

SIT1043Q Datasheet Preview — Preview of SIT1043Q PDF

Datasheet Details

Part number	SIT1043Q
Manufacturer	SIT
File Size	777.96 KB
Description	Low-Power CAN FD Bus Transceiver
Datasheet	SIT1043Q-SIT.pdf

SIT1043Q Product details

Description

SIT1043Q is an interface chip applied between CAN protocol controller and physical bus, supports 5Mbps Flexible Data-Rate, and has the capability of differential signal transmission between bus and CAN protocol controller.The SIT1043Q

Features

Compatible with the ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 standard.
AEC-Q100 qualified.
Low power sleep mode and standby mode.
Remote wake-up function and local wake-up function.
±58V BUS protection.
±30V receiver common mode input voltage.
I/O pin supports 3.3V/5V MCU.
Driver (TXD) dominant timeout function.
Undervoltage protection on VBAT, VCC and VIO pins.
High-speed CAN, support 5Mbps CAN wit.
