SiT2021B - One-Output Clock Generator

📥 Download Datasheet

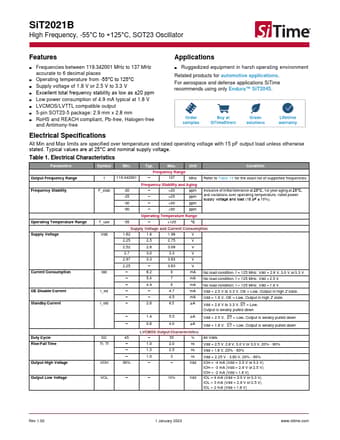

Preview of SiT2021B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number SiT2021B
Manufacturer SiTime
File Size 0.96 MB
Description One-Output Clock Generator
Datasheet download datasheet SiT2021B-SiTime.pdf

SiT2021B Product details

Description

Pin Symbol Functionality 1 GND Power Electrical ground 2 NC No Connect No connect H[1]: specified frequency output Output Enable L: output is high impedance.Only output driver is disabled.H or Open[1]: specified frequency output 3 OE/ S̅ T̅ ̅ /NC Standby L: output is low (weak pull down).Device goes to sleep mode.Supply current reduces to I_std.No Connect Any voltage between 0 and Vdd or Open[1]: Specified frequency output.Pin 3 has no function.4 VDD Power Power sup
