SiT2025B - Automotive AEC-Q100 SOT23 Oscillator

SiTime

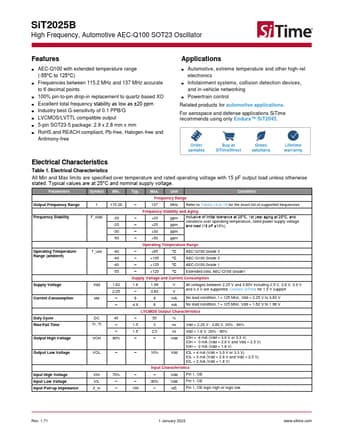

SiT2025B Datasheet Preview — Preview of SiT2025B PDF

Datasheet Details

Part number	SiT2025B
Manufacturer	SiTime
File Size	759.23 KB
Description	Automotive AEC-Q100 SOT23 Oscillator
Datasheet	SiT2025B-SiTime.pdf

SiT2025B Product details

Description

Top View Pin Symbol Functionality YXXXX 1 GND Power Electrical ground[1] GND 1 5 OUT 2 NC No Connect No connect H[2]: specified frequency output Output Enable L: output is high impedance.Only output driver is disabled.3 OE/NC No Connect Any voltage between 0 and Vdd or Open[2]: Specified frequency output.Pin 3 has no function.4 VDD Power Power supply voltage[1] NC 2 OE/NC 3 4 VDD 5 OUT Output Oscillator output Figure 1. Pin Assignments Notes: 1. A capacitor o

Features

AEC-Q100 with extended temperature range (-55°C to 125°C).
Frequencies between 115.2 MHz and 137 MHz accurate to 6 decimal points.
100% pin-to-pin drop-in replacement to quartz-based XO.
Excellent total frequency stability as low as ±20 ppm.
Industry best G-sensitivity of 0.1 PPB/G.
LVCMOS/LVTTL compatible output.
5-pin SOT23-5 package: 2.9 x 2.8 mm x mm.
RoHS and REACH compliant, Pb-free, Halogen-free and Antimony-free.
