BAR64-05W Datasheet - Siemens Semiconductor Group

BAR64-05W Silicon PIN Diode (High voltage current controlled RF resistor for RF attenuator and switches Frequency range above 1 MHz)

BAR 64 W Silicon PIN Diode High voltage current controlled RF resistor for RF attenuator and switches Frequency range above 1 MHz Low resistance and short carrier lifetime For frequencies up to 3 GHz 3 2 1 VSO05561 BAR 64-04W BAR 64-05W BAR 64-06W Type BAR 64-04W BAR 64-05W BAR 64-06W Marking Ordering Code PPs PRs PSs Q62702-A1264 Q62702-A1265 Q62702-A1266 Pin Configuration 1 = A1 1 = A1 1 = C1 2 = C2 2 = C2 2 = C2 3 = C1/2 3 = A1/2 Package 3=C1/.

BAR64-05W Datasheet (48.74 KB)

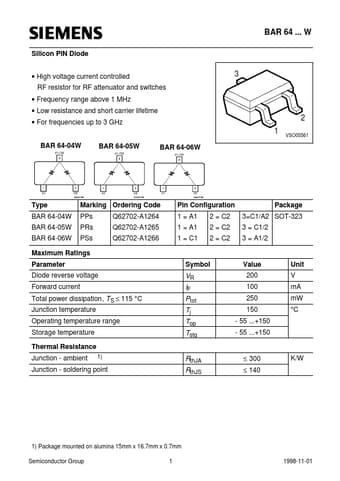

BAR64-05W Datasheet Preview — Preview of BAR64-05W PDF

Datasheet Details

Part number:

BAR64-05W

Manufacturer:

Siemens Semiconductor Group

File Size:

48.74 KB

Description:

Silicon pin diode (high voltage current controlled rf resistor for rf attenuator and switches frequency range above 1 mhz).
