BAT60 Datasheet - Siemens Semiconductor Group

BAT60 Silicon Schottky Diode

BAT 60B Silicon Schottky Diode Rectifier Schottky diode for mobile communication Low voltage high inductane For power supply For clamping and proptection in low voltage application For detection and step-up-conversion 2 1 VPS05176 ESD: Electrostatic discharge sensitive device, observe handling precaution! Type BAT 60B Marking blue/5 Ordering Code Q62702-A1189 Pin Configuration 1=C 2=A Package SOD-323 Maximum Ratings Parameter Diode reverse v.

BAT60_SiemensSemiconductorGroup.pdf

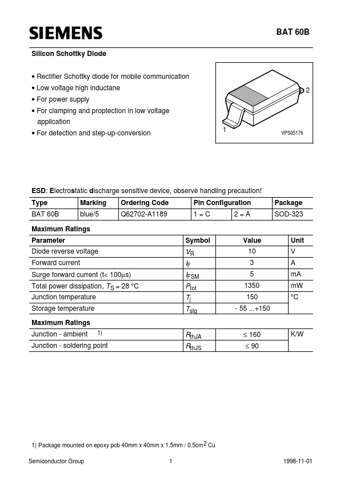

Preview of BAT60 PDF
BAT60 Datasheet Preview Page 2 BAT60 Datasheet Preview Page 3

Datasheet Details

Part number:

BAT60

Manufacturer:

Siemens Semiconductor Group

File Size:

25.00 KB

Description:

Silicon schottky diode.
