BSM25GB120DN2 Datasheet - Siemens Semiconductor Group

BSM25GB120DN2 IGBT

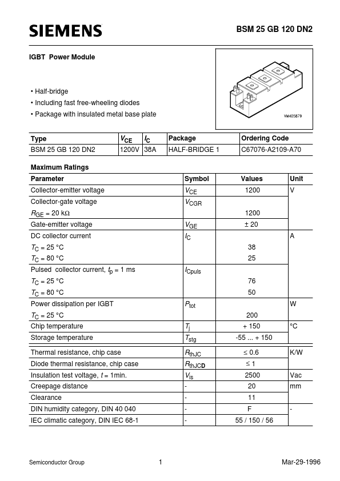

BSM 25 GB 120 DN2 IGBT Power Module Half-bridge Including fast free-wheeling diodes Package with insulated metal base plate Type BSM 25 GB 120 DN2 Maximum Ratings Parameter Collector-emitter voltage Collector-gate voltage VCE IC Package HALF-BRIDGE 1 Ordering Code C67076-A2109-A70 1200V 38A Symbol Values 1200 1200 Unit V VCE VCGR VGE IC RGE = 20 kΩ Gate-emitter voltage DC collector current ± 20 A 38 25 TC = 25 °C TC = 80 °C Pulsed collector current, t.

BSM25GB120DN2_SiemensSemiconductorGroup.pdf

Preview of BSM25GB120DN2 PDF
BSM25GB120DN2 Datasheet Preview Page 2 BSM25GB120DN2 Datasheet Preview Page 3

Datasheet Details

Part number:

BSM25GB120DN2

Manufacturer:

Siemens Semiconductor Group

File Size:

111.41 KB

Description:

Igbt.
