BSM50GD120DN2 Datasheet - Siemens Semiconductor Group

BSM50GD120DN2 IGBT

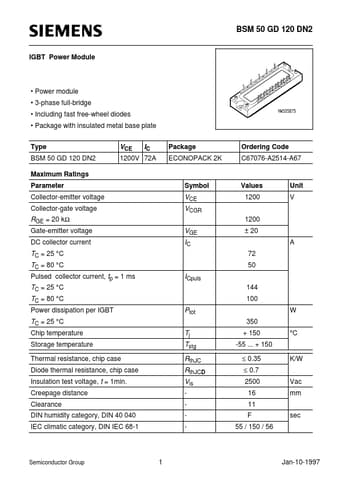

BSM 50 GD 120 DN2 IGBT Power Module Power module 3-phase full-bridge Including fast free-wheel diodes Package with insulated metal base plate Type BSM 50 GD 120 DN2 Maximum Ratings Parameter Collector-emitter voltage Collector-gate voltage Symbol Values 1200 1200 Unit V VCE IC Package ECONOPACK 2K Ordering Code C67076-A2514-A67 1200V 72A VCE VCGR VGE IC RGE = 20 kΩ Gate-emitter voltage DC collector current ± 20 A 72 50 TC = 25 °C TC = 80 °C Puls.

BSM50GD120DN2_SiemensSemiconductorGroup.pdf

Preview of BSM50GD120DN2 PDF
BSM50GD120DN2 Datasheet Preview Page 2 BSM50GD120DN2 Datasheet Preview Page 3

Datasheet Details

Part number:

BSM50GD120DN2

Manufacturer:

Siemens Semiconductor Group

File Size:

126.61 KB

Description:

Igbt.
