BSM50GD120DN2E3226 IGBT

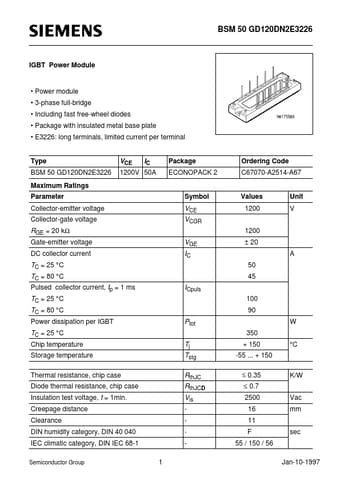

BSM 50 GD120DN2E3226 IGBT Power Module Power module 3-phase full-bridge Including fast free-wheel diodes Package with insulated metal base plate E3226: long terminals, limited current per terminal Type BSM 50 GD120DN2E3226 Maximum Ratings Parameter Collector-emitter voltage Collector-gate voltage VCE IC Package ECONOPACK 2 Ordering Code C67070-A2514-A67 1200V 50A Symbol Values 1200 1200 Unit V VCE VCGR VGE IC RGE = 20 kΩ Gate-emitter.
