BSM50GD120DN2G IGBT

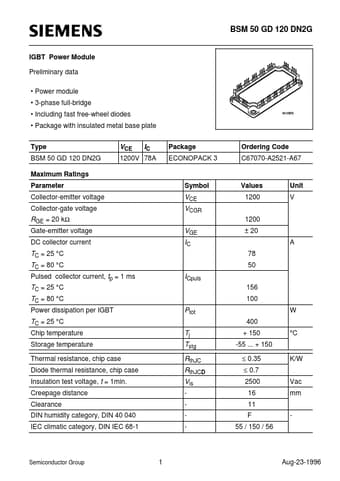

BSM 50 GD 120 DN2G IGBT Power Module Preliminary data Power module 3-phase full-bridge Including fast free-wheel diodes Package with insulated metal base plate Type BSM 50 GD 120 DN2G Maximum Ratings Parameter Collector-emitter voltage Collector-gate voltage Symbol Values 1200 1200 Unit V VCE IC Package ECONOPACK 3 Ordering Code C67070-A2521-A67 1200V 78A VCE VCGR VGE IC RGE = 20 kΩ Gate-emitter voltage DC collector current ± 20 A 78 50 TC = 25 °.
