BSP452 - MiniPROFET

Datasheet Summary

Description

N channel vertical power FET with charge pump, ground referenced CMOS compatible input,monolithically integrated in Smart SIPMOS® technology.

Fully protected by embedded protection functions.

Siemens Semiconductor Group

📥 Download Datasheet

Datasheet Details

Part number	BSP452
Manufacturer	Siemens Semiconductor Group
File Size	69.79 KB
Description	MiniPROFET
Datasheet	BSP452 Datasheet
Additional preview pages of the BSP452 datasheet.

📁 Similar Datasheet

BSP452 - Smart High-Side Power Switch (Infineon Technologies AG)
BSP450 - MiniPROFET (Infineon Technologies AG)
BSP40 - MEDIUM POWER AMPLIFIER (STMicroelectronics)
BSP40 - Surface mount Si-Epitaxial PlanarTransistors (Diotec Semiconductor)
BSP40 - (BSP40 / BSP42) SOT223 NPN SILICON PLANAR MEDIUM POWER TRANSISTORS (Zetex Semiconductors)
BSP41 - NPN medium power transistors (NXP)
BSP41 - MEDIUM POWER AMPLIFIER (STMicroelectronics)
BSP42 - NPN SILICON PLANAR MEDIUM POWER TRANSISTOR (Zetex Semiconductors)
BSP42 - MEDIUM POWER AMPLIFIER (STMicroelectronics)
BSP42 - Surface mount Si-Epitaxial PlanarTransistors (Diotec Semiconductor)

Other Datasheets by Siemens Semiconductor Group

BSP450 - MiniPROFET
BSP123 - Small-Signal Transistor
BSP125 - SIPMOS Small-Signal Transistor
BSP129 - SIPMOS Small-Signal Transistor
BSP135 - SIPMOS Small-Signal Transistor
BSP149 - SIPMOS Small-Signal Transistor
BSP17 - SIPMOS Small-Signal Transistor
BSP170 - SIPMOS Small-Signal Transistor

Full PDF Text Transcription

Click to expand full text

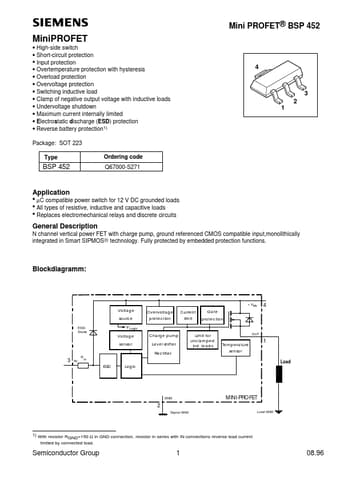

Mini PROFET® BSP 452 MiniPROFET • High-side switch • Short-circuit protection • Input protection • Overtemperature protection with hysteresis • Overload protection • Overvoltage protection • Switching inductive load • Clamp of negative output voltage with inductive loads • Undervoltage shutdown • Maximum current internally limited • Electrostatic discharge (ESD) protection • Reverse battery protection1) Package: SOT 223 Type Ordering code Q67000-S271 4 3 2 1 BSP 452 Application • µC compatible power switch for 12 V DC grounded loads • All types of resistive, inductive and capacitive loads • Replaces electromechanical relays and discrete circuits General Description N channel vertical power FET with charge pump, ground referenced CMOS compatible input,monolithically integrated in Sma
