BSP090 - P-channel enhancement mode vertical D-MOS transistor

Datasheet Summary

Description

DESCRIPTION P-channel enhancement mode vertical D-MOS transistor in a 4-pin plastic SOT223 SMD package.

CAUTION The device is supplied in an antistatic package.

The gate-source input must be protected against static discharge during transport or handling.

Features

  • High speed switching.
  • No secondary breakdown.
  • Very low on-state resistance.

📥 Download Datasheet

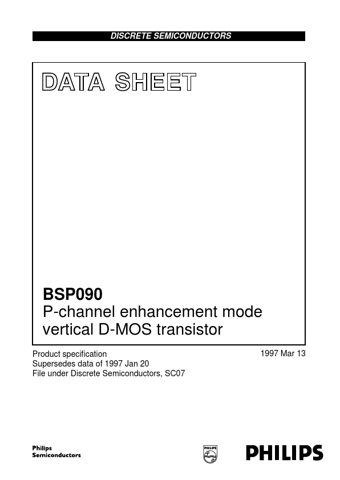

Datasheet preview – BSP090

Datasheet Details

Part number BSP090
Manufacturer NXP
File Size 124.07 KB
Description P-channel enhancement mode vertical D-MOS transistor
Datasheet download datasheet BSP090 Datasheet
Additional preview pages of the BSP090 datasheet.
