FP201L100 - Differential Magnetoresistive Sensor

FP201L100 Description

Differential Magnetoresistive Sensor FP 201 L 100 .

FP201L100 Features

* Extremely high output voltage
* 2 independently biased magnetic circuits
* Robust housing
* Signal amplitude independent of operating speed

FP201L100 Applications

* Detection of speed
* Detection of position
* Detection of sense of rotation Dimensions in mm Type FP 201 L 100 Ordering Code Q65210-L101 The differential magnetoresistive sensor FP 201 L 100 consists of two magnetically biased magneto resistors made from L-type InSb/NiSb

📥 Download Datasheet

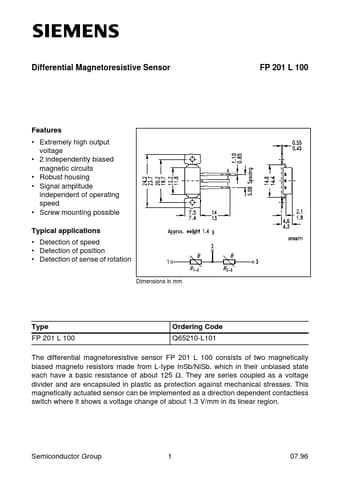

Preview of FP201L100 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FP201L100
Manufacturer
Siemens Semiconductor Group
File Size
170.34 KB
Datasheet
FP201L100_SiemensSemiconductorGroup.pdf
Description
Differential Magnetoresistive Sensor
