FP200R12N3T7_B11 Datasheet - Infineon

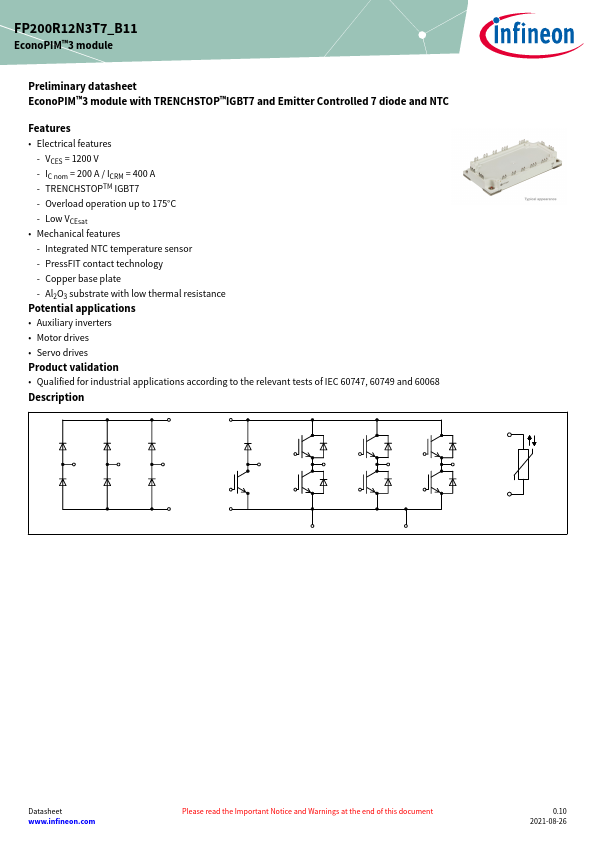

FP200R12N3T7_B11 EconoPIM 3 module

FP200R12N3T7_B11 Features

* Electrical features - VCES = 1200 V - IC nom = 200 A / ICRM = 400 A - TRENCHSTOPTM IGBT7 - Overload operation up to 175°C - Low VCEsat

* Mechanical features - Integrated NTC temperature sensor - PressFIT contact technology - Copper base plate - Al2O3 substrate with low thermal resi

Datasheet Details

FP200R12N3T7_B11

608.83 KB

Econopim 3 module.
