FP25R12KT4 Datasheet PDF - Infineon IGBT Specs

FP25R12KT4 - IGBT

Datasheet Summary

Features

Extended Operation Temperature Tvj op.
Low Switching Losses.
Trench IGBT 4.
Tvj op = 150°C Mechanical Features.
High Power and Thermal Cycling Capability.
Integrated NTC temperature sensor.
Isolated Base Plate.
Copper Base Plate.
Solder Contact Technology.
RoHS compliant.
Standard Housing Module Label Code Barcode Code 128 DMX - Code prepared by: AS approved by: RS Content of the Code Module Ser.

Datasheet Details

Part number	FP25R12KT4
Manufacturer	Infineon
File Size	813.79 KB
Description	IGBT
Datasheet	FP25R12KT4 Datasheet
Additional preview pages of the FP25R12KT4 datasheet.

📁 Similar Datasheet

FP25R12KT3 - IGBT-Module (eupec GmbH)

FP25R12KE3 - IGBT-Module (eupec GmbH)

FP25R12KS4C - IGBT (eupec)

FP254N - N-Channel 250V MOSFET (VBsemi)

FP25S - Rectifier Stacks (VMI)

FP200F - Rectifier Stacks (VMI)

FP200F40ADFF1 - FAST RECOVERY DIODE MODULE (JILIN SINO)

FP201 - High-Frequency Amp/ Differential Amp Applications (Sanyo Semicon Device)

FP201L100 - Differential Magnetoresistive Sensor (Siemens Semiconductor Group)

FP202 - Push-Pull Circuit Applications (Sanyo Semicon Device)

Full PDF Text Transcription

Click to expand full text

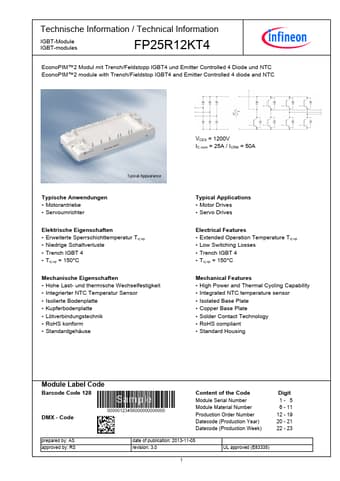

TechnischeInformation/TechnicalInformation IGBT-Module IGBT-modules FP25R12KT4 EconoPIM™2ModulmitTrench/FeldstoppIGBT4undEmitterControlled4DiodeundNTC EconoPIM™2modulewithTrench/FieldstopIGBT4andEmitterControlled4diodeandNTC VCES = 1200V IC nom = 25A / ICRM = 50A TypischeAnwendungen • Motorantriebe • Servoumrichter ElektrischeEigenschaften • ErweiterteSperrschichttemperaturTvjop • NiedrigeSchaltverluste • TrenchIGBT4 • Tvjop=150°C MechanischeEigenschaften • HoheLast-undthermischeWechselfestigkeit • IntegrierterNTCTemperaturSensor • IsolierteBodenplatte • Kupferbodenplatte • Lötverbindungstechnik • RoHSkonform • Standardgehäuse TypicalApplications • MotorDrives • ServoDrives ElectricalFeatures • ExtendedOperationTemperatureTvjop •
