FP25R12U1T4 - IGBT-Module

Datasheet Summary

Features

  • Low Switching Losses.
  • Trench IGBT 4.
  • Tvj op = 150°C.
  • Low VCEsat Mechanical Features.
  • Al2O3 Substrate with Low Thermal Resistance.
  • Rugged Duplex frame construction.
  • Rugged selfacting PressFIT assembly Module Label Code Barcode Code 128 DMX - Code prepared by: DK approved by: MB Content of the Code Module Serial Number Module Material Number Production Order Number Datecode (Production Year) Datecode (Production Week) Digit 1 -.

📥 Download Datasheet

Datasheet preview – FP25R12U1T4

Datasheet Details

Part number FP25R12U1T4
Manufacturer Infineon
File Size 0.97 MB
Description IGBT-Module
Datasheet download datasheet FP25R12U1T4 Datasheet
Additional preview pages of the FP25R12U1T4 datasheet.

📁 Similar Datasheet

  • FP25R12KE3 - IGBT-Module (eupec GmbH)
  • FP25R12KS4C - IGBT (eupec)
  • FP25R12KT3 - IGBT-Module (eupec GmbH)
  • FP254N - N-Channel 250V MOSFET (VBsemi)
  • FP25S - Rectifier Stacks (VMI)
  • FP200F - Rectifier Stacks (VMI)
  • FP200F40ADFF1 - FAST RECOVERY DIODE MODULE (JILIN SINO)
  • FP201 - High-Frequency Amp/ Differential Amp Applications (Sanyo Semicon Device)
  • FP201L100 - Differential Magnetoresistive Sensor (Siemens Semiconductor Group)
  • FP202 - Push-Pull Circuit Applications (Sanyo Semicon Device)
Other Datasheets by Infineon

Full PDF Text Transcription

Click to expand full text

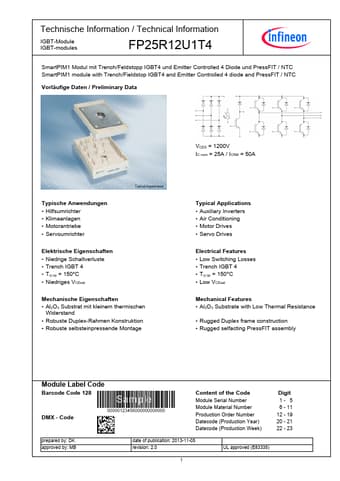

TechnischeInformation/TechnicalInformation IGBT-Module IGBT-modules FP25R12U1T4 SmartPIM1ModulmitTrench/FeldstoppIGBT4undEmitterControlled4DiodeundPressFIT/NTC SmartPIM1modulewithTrench/FieldstopIGBT4andEmitterControlled4diodeandPressFIT/NTC VorläufigeDaten/PreliminaryData TypischeAnwendungen • Hilfsumrichter • Klimaanlagen • Motorantriebe • Servoumrichter ElektrischeEigenschaften • NiedrigeSchaltverluste • TrenchIGBT4 • Tvjop=150°C • NiedrigesVCEsat MechanischeEigenschaften • Al2O3 Substrat mit kleinem thermischen Widerstand • RobusteDuplex-RahmenKonstruktion • RobusteselbsteinpressendeMontage VCES = 1200V IC nom = 25A / ICRM = 50A TypicalApplications • AuxiliaryInverters • AirConditioning • MotorDrives • ServoDrives ElectricalFea
