FP254N - N-Channel 250V MOSFET

VBsemi

FP254N Description

FP254N-VB FP254N-VB Datasheet N-Channel 250 V (D-S) 175 °C MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) 250 RDS(on) () 0.040 at VGS = 10 V 0.04.

FP254N Features

* Trench Power MOSFETS
* 175 °C Junction Temperature
* New Low Thermal Resistance Package

FP254N Applications

* Industrial D RoHS COMPLIANT G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (TJ = 175 °C) TC = 25 °C TC = 125 °C ID Pulsed Drain Current IDM Avalanch

📥 Download Datasheet

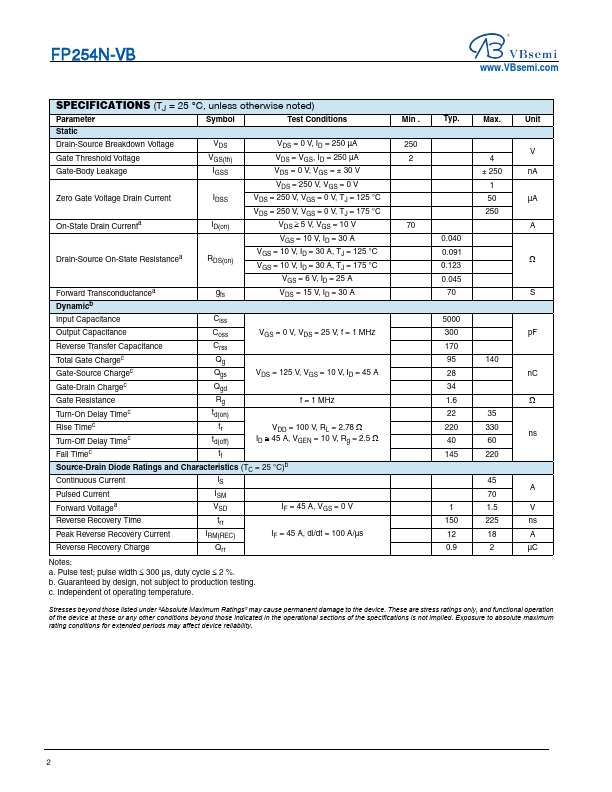

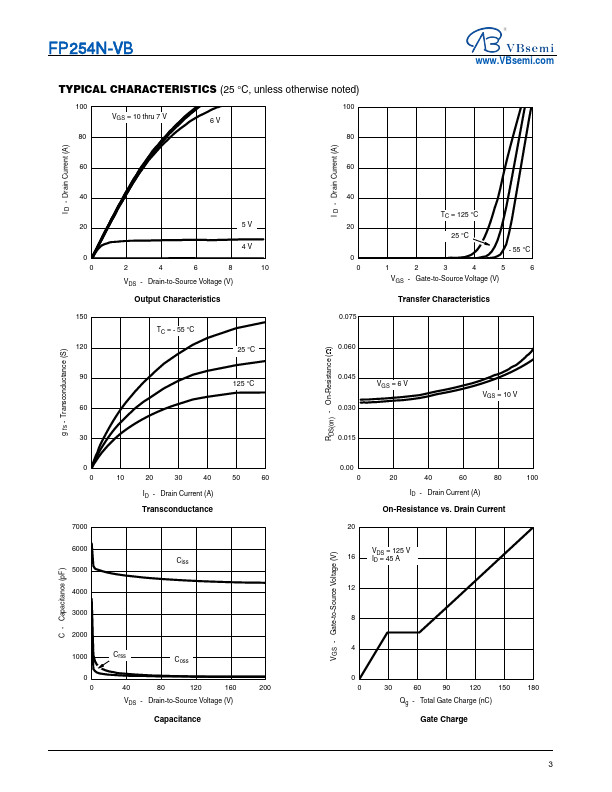

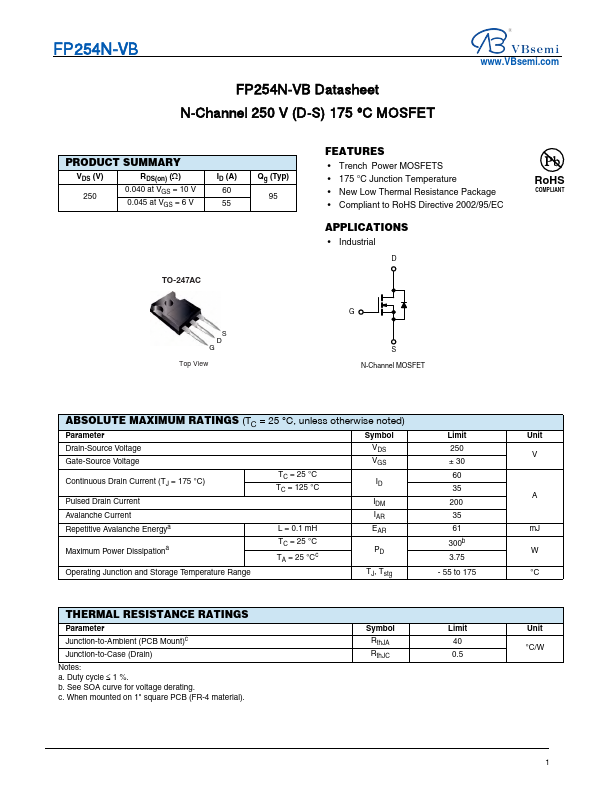

FP254N Datasheet Preview — Preview of FP254N PDF

Datasheet Details

Part number: FP254N
Manufacturer: VBsemi
File Size: 226.24 KB
Datasheet: FP254N-VBsemi.pdf
Description: N-Channel 250V MOSFET
