FP25R12KT4_B11 IGBT

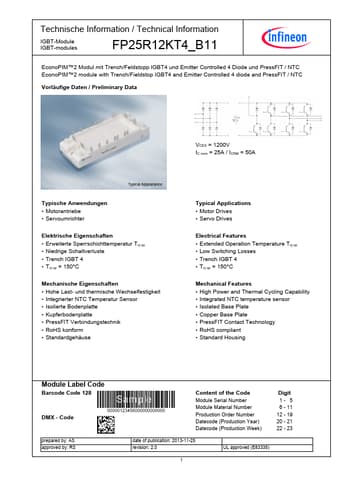

Technische Information / Technical Information IGBT-Module IGBT-modules FP25R12KT4_B11 EconoPIM™2 Modul mit Trench/Feldstopp IGBT4 und Emitter Controlled 4 Diode und PressFIT / NTC EconoPIM™2 module with Trench/Fieldstop IGBT4 and Emitter Controlled 4 diode and PressFIT / NTC Vorläufige Daten / Preliminary Data VCES = 1200V IC nom = 25A / ICRM = 50A Typische Anwendungen Motorantriebe Servoumrichter Elektrische Eigenschaften Erweiterte Sperrschichttemperatur Tvj.

FP25R12KT4_B11 Features

* Extended Operation Temperature Tvj op

* Low Switching Losses

* Trench IGBT 4

* Tvj op = 150°C Mechanical Features

* High Power and Thermal Cycling Capability

* Integrated NTC temperature sensor

* Isolated Base Plate

* Copper Base Plat

FP25R12KT4_B11 Datasheet (818.23 KB)
