Q62702-A1270 Silicon RF Switching Diode Preliminary data (Design for use in shunt configuration High shunt signal isolation Low shunt insertion loss)

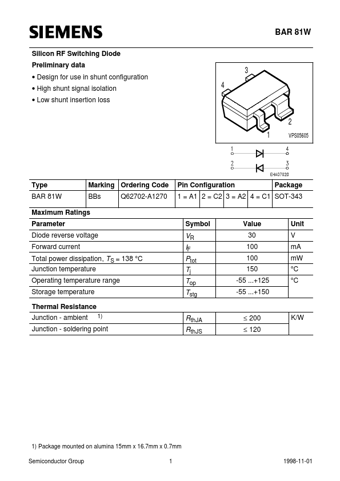

BAR 81W Silicon RF Switching Diode Preliminary data Design for use in shunt configuration High shunt signal isolation Low shunt insertion loss 3 4 2 1 VPS05605 Type BAR 81W Marking Ordering Code BBs Q62702-A1270 Pin Configuration Package 1 = A1 2 = C2 3 = A2 4 = C1 SOT-343 Maximum Ratings Parameter Diode reverse voltage Forward current Total power dissipation, T S = 138 °C Junction temperature Operating temperature range Storage temperature Thermal Resistanc.

Q62702-A1270_SiemensSemiconductorGroup.pdf

Q62702-A1270 Datasheet Preview — Preview of Q62702-A1270 PDF

Datasheet Details

Part number:

Q62702-A1270

Manufacturer:

Siemens Semiconductor Group

File Size:

30.65 KB

Description:

Silicon rf switching diode preliminary data (design for use in shunt configuration high shunt signal isolation low shunt insertion loss).
