Q62702-A779
Siemens Semiconductor Group
86.03 KB
Silicon switching diodes (switching applications high breakdown voltage).

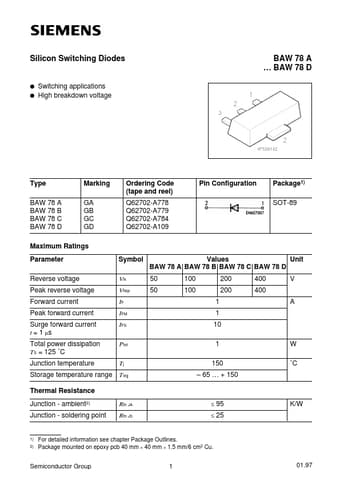

Silicon Switching Diodes
BAW 78 A … BAW 78 D
Switching applications q High breakdown voltage
q
Ty.
pe BAW 78 A BAW 78 B BAW 78 C BAW 78 D
Marking GA GB GC GD
Ordering Code (tape and reel) Q62702-A7.
