Q62702-A918 Silicon Schottky Diode (For mixer applications in the VHF/UHF range For high-speed switching)

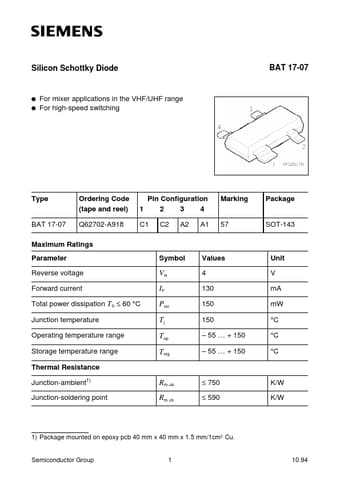

Silicon Schottky Diode BAT 17-07 q q For mixer applications in the VHF/UHF range For high-speed switching Type Ordering Code (tape and reel) Q62702-A918 Pin Configuration 1 2 3 4 C1 C2 A2 A1 Marking Package BAT 17-07 57 SOT-143 Maximum Ratings Parameter Reverse voltage Forward current Total power dissipation TS ≤ 60 °C Junction temperature Operating temperature range Storage temperature range Thermal Resistance Junction-ambient1) Junction-soldering point Symbol Values 4 130 150 150 <.

Q62702-A918 Datasheet (99.09 KB)

Q62702-A918 Datasheet Preview — Preview of Q62702-A918 PDF

Datasheet Details

Part number:

Q62702-A918

Manufacturer:

Siemens Semiconductor Group

File Size:

99.09 KB

Description:

Silicon schottky diode (for mixer applications in the vhf/uhf range for high-speed switching).
