Q62702-A921 Datasheet - Siemens Semiconductor Group

Q62702-A921 Silicon Low Leakage Diode Array (Low-leakage applications Medium speed switching times Connected in series)

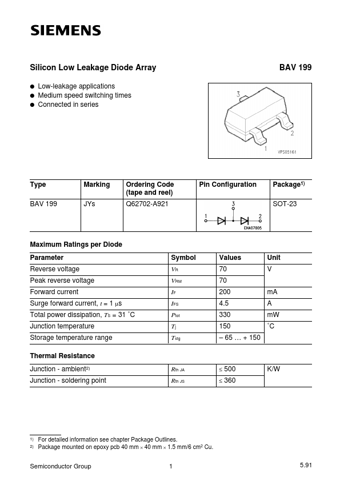

Silicon Low Leakage Diode Array Low-leakage applications q Medium speed switching times q Connected in series q BAV 199 Type BAV 199 Marking JYs Ordering Code (tape and reel) Q62702-A921 Pin Configuration Package1) SOT-23 Maximum Ratings per Diode Parameter Reverse voltage Peak reverse voltage Forward current Surge forward current, t = 1 µs Total power dissipation, TS = 31 ˚C Junction temperature Storage temperature range Thermal Resistance Junction - ambient2) Junction - soldering point .

Q62702-A921 Datasheet (98.38 KB)

Q62702-A921 Datasheet Preview — Preview of Q62702-A921 PDF

Datasheet Details

Part number:

Q62702-A921

Manufacturer:

Siemens Semiconductor Group

File Size:

98.38 KB

Description:

Silicon low leakage diode array (low-leakage applications medium speed switching times connected in series).
