Q62702-A938 Datasheet - Siemens Semiconductor Group

Q62702-A938 Silicon RF Switching Diode (Low-loss VHF/UHF switch above 10 MHz Pin diode with low forward resistance)

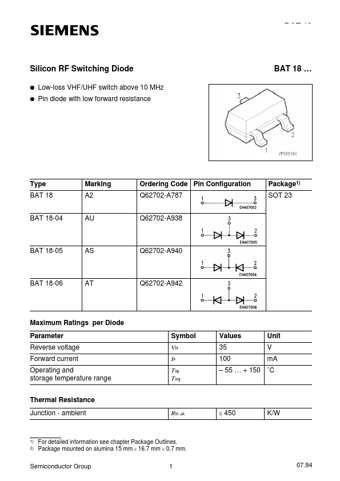

BAT 18 Silicon RF Switching Diode q q BAT 18 … Low-loss VHF/UHF switch above 10 MHz Pin diode with low forward resistance Type BAT 18 BAT 18-04 Marking A2 AU Ordering Code Pin Configuration Q62702-A787 Q62702-A938 Package1) SOT 23 BAT 18-05 AS Q62702-A940 BAT 18-06 AT Q62702-A942 Maximum Ratings per Diode Parameter Reverse voltage Forward current Operating and storage temperature range Thermal Resistance Junction - ambient Rth JA ≤ Symbol VR IF Top Tstg Values 35 100 Unit V mA .

Q62702-A938_SiemensSemiconductorGroup.pdf

Q62702-A938 Datasheet Preview — Preview of Q62702-A938 PDF

Datasheet Details

Part number:

Q62702-A938

Manufacturer:

Siemens Semiconductor Group

File Size:

39.04 KB

Description:

Silicon rf switching diode (low-loss vhf/uhf switch above 10 mhz pin diode with low forward resistance).
